Plans For Transfer

What is a Plan for Transfer?

When land is being transferred (sold), there needs to be a clear and accurate way to describe the land being transferred.  Often the land being transferred is part of an existing title, so a Transfer plan can help illustrate what land is being transferred out of a title.

The plan should be Land Registry Compliant (to a scale of 1:500 or 1:1250), have a north point.  As no two pieces of land are the same, each transfer plan is individual.

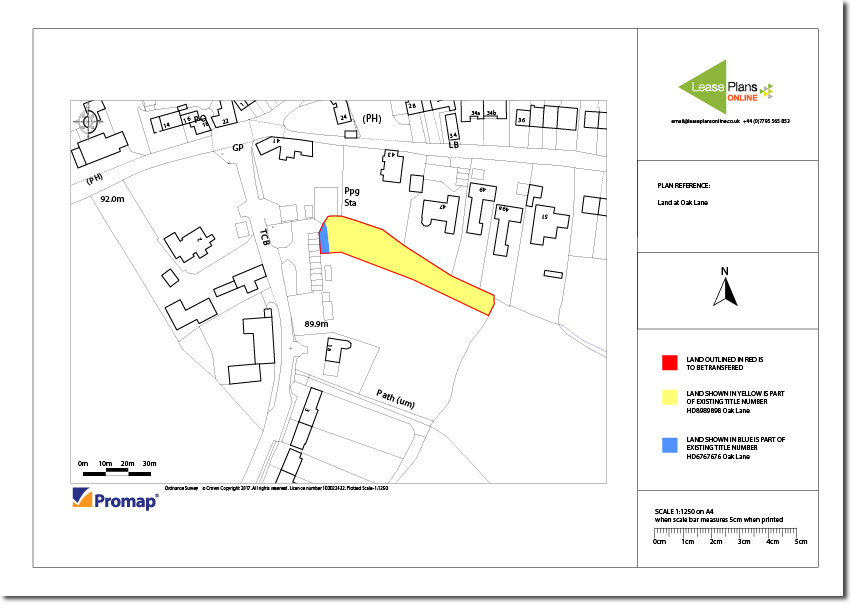

Plans are drawn by starting with Ordnance Survey detail then on site measurements are used to correctly denote the land being transferred.  Existing title documents that are to be effected are overlaid to show the effect of the transfer on existing titles.  In the example below two existing titles were having sections sold off – The red line shows the area to be transferred, the yellow and blue areas show the existing titles to which the land belongs.

Land Registry Compliant Plan for use in Transferring registered land from one owner to another

Land Registry Compliant Transfer Plan

If you need a plan for transferring part of a registered title please call or text on 07795565853 or email@leaseplansonline.co.uk



Land Registry Compliant Lease Plan

What is a Land Registry Compliant Lease Plan

A lease plan is a scaled technical drawing which shows the parts of parts of property and land over which a leaseholder has exclusive or shared rights. A lease document will use words to describe the property and land and the Lease Plan will be a visual representation of these rights.

A lease plan will usually be needed when:

  • it is the first time a leasehold property is registered
  • when a leasehold property is sold with 7 or more years remaining on the term
  • when a lease is extended
  • when the extent of the demise changes (for example if an extension is built or a loft conversion is carried out).

    Land Registry Compliant Residential Lease Plan Example

    Land Registry Compliant Residential Lease Plan Example

Lease Plans must be Land Registry Compliant.

It must:

  • Have a detailed floor plan showing floor levels at either 1:100 or 1:200
  • Show a location plan at 1:1250
  • Not be hand drawn
  • Include a North Point
  • Have colouring to show the demise and common parts
  • It should be consistent with the Lease document and support the descriptions therein

If you need a lease plan or would like to talk about issues regarding lease plans, call 07795565853 or email@leaseplansonline.co.uk

Land Registry Plans

What is a Land Registry Plan?

In simple terms, a Land Registry Plan is any plan drawn to the specification by the Land Registry.  This can include deed plans to accompany any kind of deed.  In the sphere of conveyancing, land transfers and variations, it is often necessary to describe a piece of land and its boundaries.  Whilst it is possible to do this with words, the most accurate and clear way to do this is with a visual plan.  Generally a 1:1250 plan is sufficient for this purpose, however in some cases it may be beneficial to have a larger plan to show intricate details (1:200 for example).

Most deed plans will use Ordnance Survey information as a starting point, then use accurate measurements taken at the site to ensure the boundaries which need showing, are in the correct place.

Land Registry Compliant Plan for use with Deed Document

Land Registry Compliant Deed Plan

If you need a Land Registry Plan or would like to discuss a deed plan issue, please call on 07795565853 or email@leaseplansonline.co.uk





Plans and photos to lease plan

Creating plans from your drawings…

Its been a busy and varied year so far.  I’m doing lots of plans from information provided by clients as well as site visits to do the plans from scratch.  Site visits aren’t always necessary – if there are good plans of a property then I can often create the Land Registry compliant plans from information provided.  The same goes for simple scaled floorplans and shop plans for Council use. (And of course you save money if a site visit is not needed!). Architects plans are obviously the best to work from, but over the years I’ve got good at interpreting people’s home drawn floor plans to create compliant plans.  Here are a few examples of jobs I’ve carried out recently where a site visit wasn’t required.Hand drawn to drawn upHand drawn floor plan provided by client to scaled shop floor plan for the Council.

Here is an example where the client provided old architects plans:

Architect plans to lease plan

For the next job, a landlord provided hand drawn plans of his flat plus some photos of trickier areas and using this, plus the Ordnance Survey site plan a Land Registry Compliant Lease Plan was created…

Plans and photos to lease plan

Sometimes a property developer will send lots of different architects files and plans for a large new development and I sift through them to pull out the relevant information and create compliant plans:

Property developer architect plans to lease plans

So as you can see, site visits aren’t always required.  If you’d like to talk to me about creating lease plans, scaled plans or floorplans just give me a call or text on 07795 565853 or send me an email with your sketches to email@leaseplansonline.co.uk.













Lease Plan London

Last week, I carried out a residential Land Registry compliant lease plan in North London where the view from the flat was just breathtaking. It got me thinking how lucky I am to live and work in such a vibrant and dynamic place.

I moved to London from Sussex about 10 years ago and if I’m honest, I was terrified. I’d always been something of a country mouse so finding myself living in Westminster was a shock to the system. I didn’t sleep for the first two weeks – jumping at every siren and shout but after a while the Edgware Road started to feel familiar and homely and I would actually get a homesick feeling when I went to the suburbs. I’d breath a sigh of relief when I saw the signs for Central London on the A40.

It’s hard to explain to those who’ve never lived in the capital. Most of my friends think I’m mad, forking out the sum of money I have on a one bed flat. But London just feels so alive. That’s not to say it’s perfect, but I love experiencing the mix of cultures, having world class art and entertainment just a bus ride away, watching excited people clamber into a phone box for a tourist photo, the beautiful and varied architecture, the grandeur of the Thames, the cosy village feel of so many areas but most of all, I think it is the patient way that most people rub along together that makes me so fond of the city I now call home.

London’s fluidity means that businesses like Lease Plans Online can flourish and grow and this in turn helps me support my family, better my circumstances and give back to my local community.

If you’re not sure about London, I challenge you to watch the sunset from the Millennium Bridge with St Paul’s on one side and the Tate Modern on the other and just stand and take in what you see – the mix of people, the sounds, the smells and the views. I’m sure you’ll love it too.

Lease Plans from £89

Ok, it may sound like I’ve gone crazy offering plans at such a low price, but I haven’t:

If you have existing plans of the property (such as architect’s plans or accurate sketched drawings), I can often use the information to create a Land Registry Compliant lease plan for you from just £89.  This would be for residential properties up to 1000 sq ft and assuming that all the information I needed was shown on the plans you provide. Drop me an email at email@leaseplansonline.co.uk if you’d like me to check your plans to see if a site visit is required.

I can do a site visit to create a Residential Land Registry Compliant Lease Plan from £175. (Within 30 miles of N8 and up to 1200 sq ft).

For Commercial Lease Plans, prices start at £230 up to 1000 sq ft – give me a call to discuss your exact requirements.

The prices above are guide prices, but just as most properties have their own peculiarities, Lease plans are often quite unique – because of this I tend to quote on job-by-job basis.  I provide discounts for multiple properties at the same location.

Call me on 07795 565853 or email on email@leaseplansonline.co.uk to find out more and get an individual quote.
